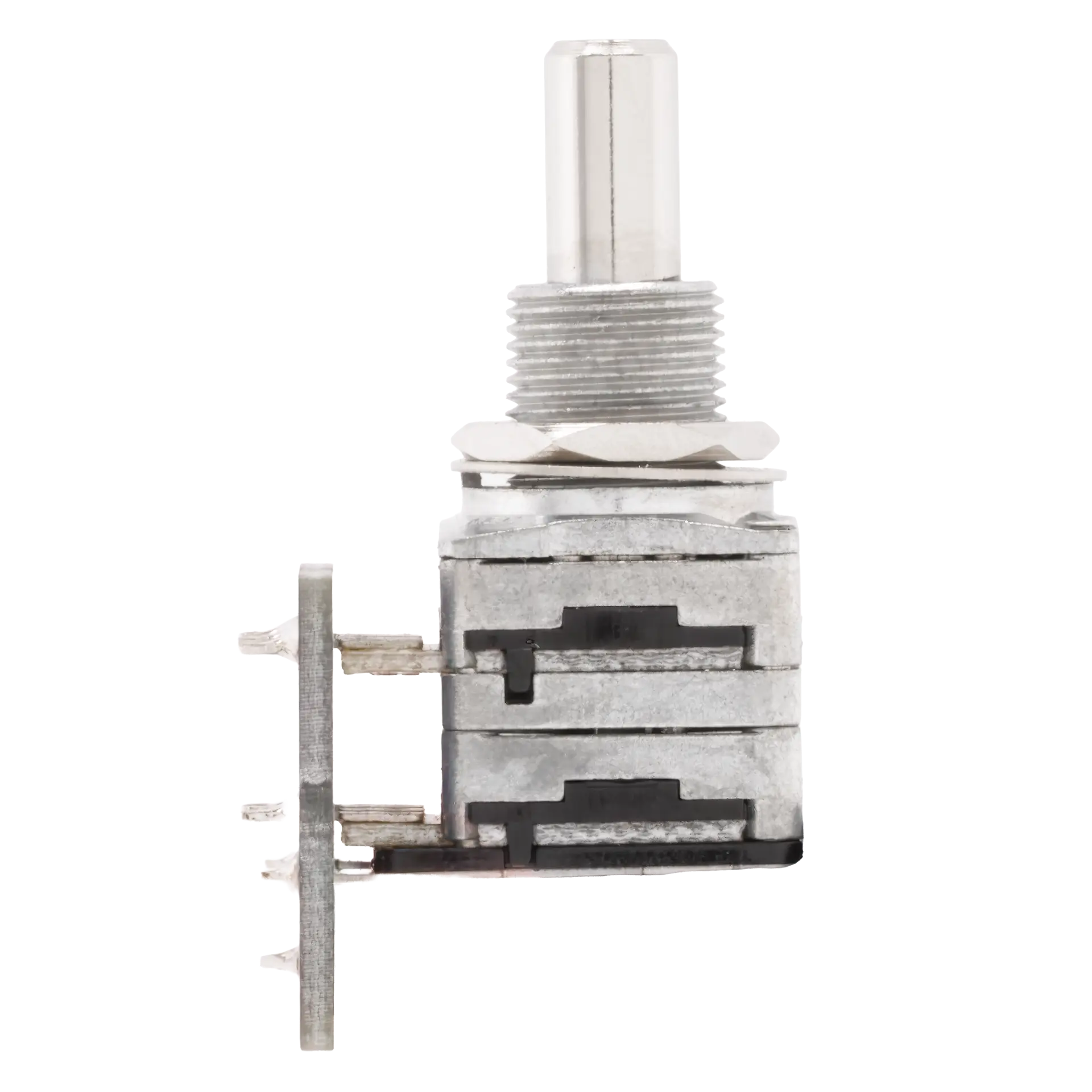

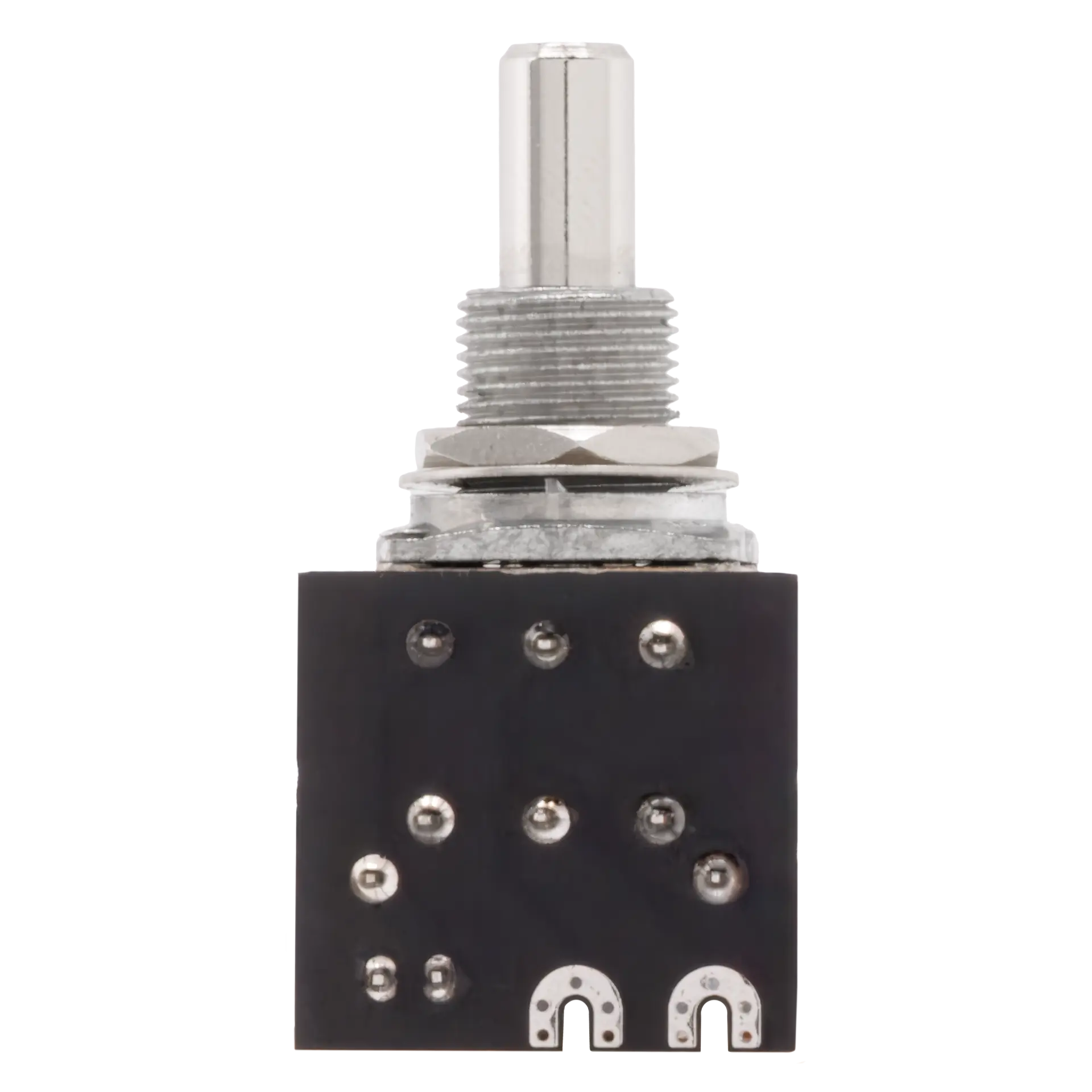

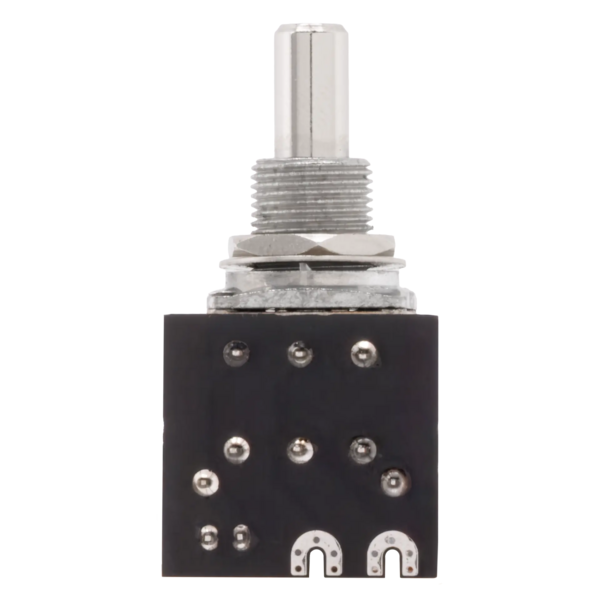

Sadowsky Parts - MetroExpress Balance Pot (05A+05C220K) Module, Lefthand

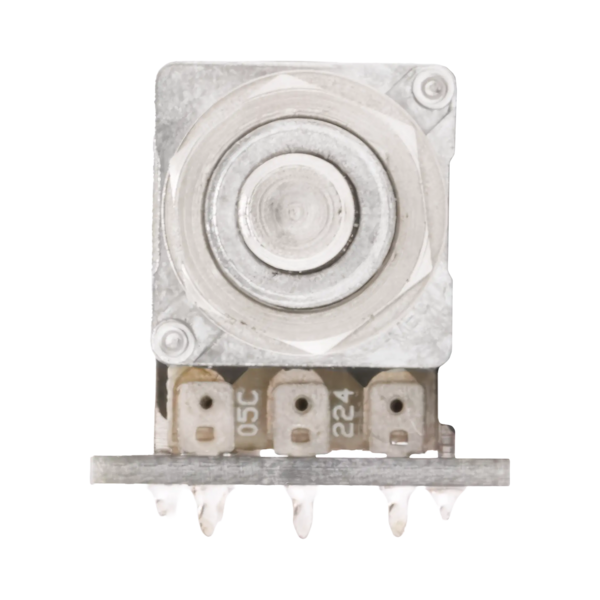

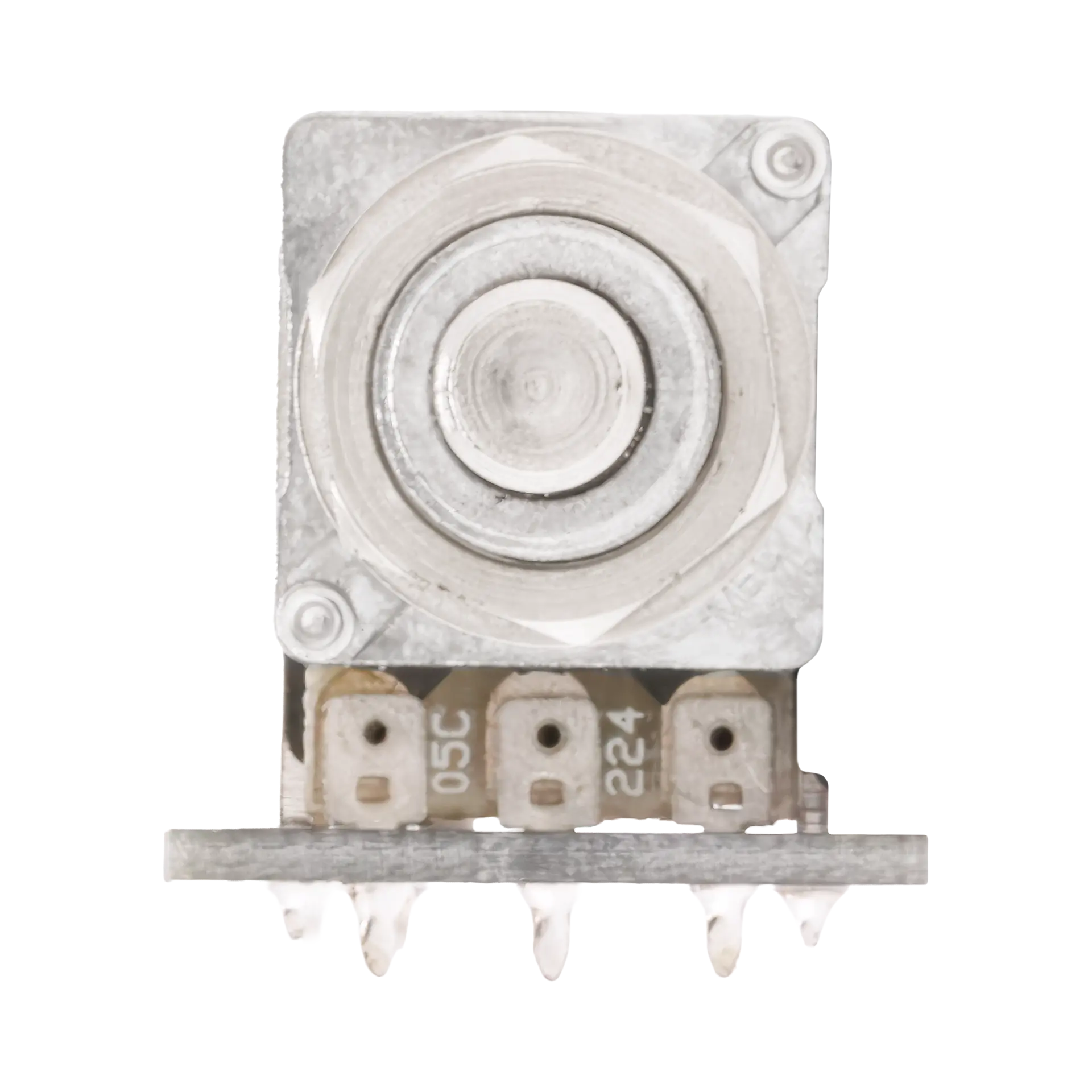

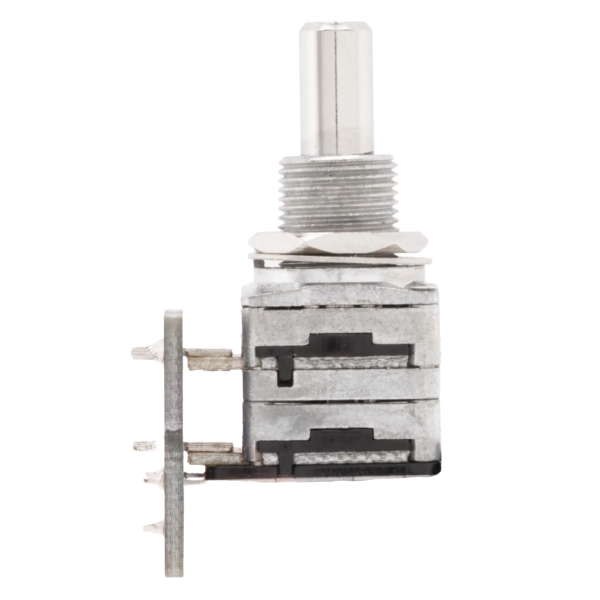

Balance control potentiometer (05A+05C220K) for left-hand Sadowsky MetroExpress instruments. Compatible with Sadowsky MetroExpress Hybrid P/J, Vintage J/J, Vintage M/J-Style, Modern, Will Lee Artist Line and Verdine White Artist Line models. The V2 version is equipped with a MEC potentiometer. Pre-wired on PCB with connector for easy replacement. The nut and washer are included.

Article Number: SP S ME BAL LH V2

Buy now Find a retailer Contact

balance control (05C220K+05A220K) for Sadowsky MetroExpress instruments
suitable for Hybrid P/J, Vintage J/J, Vintage M/J-Style, Modern, Will Lee Artist Line and Verdine White Artist Line models
lefthand version

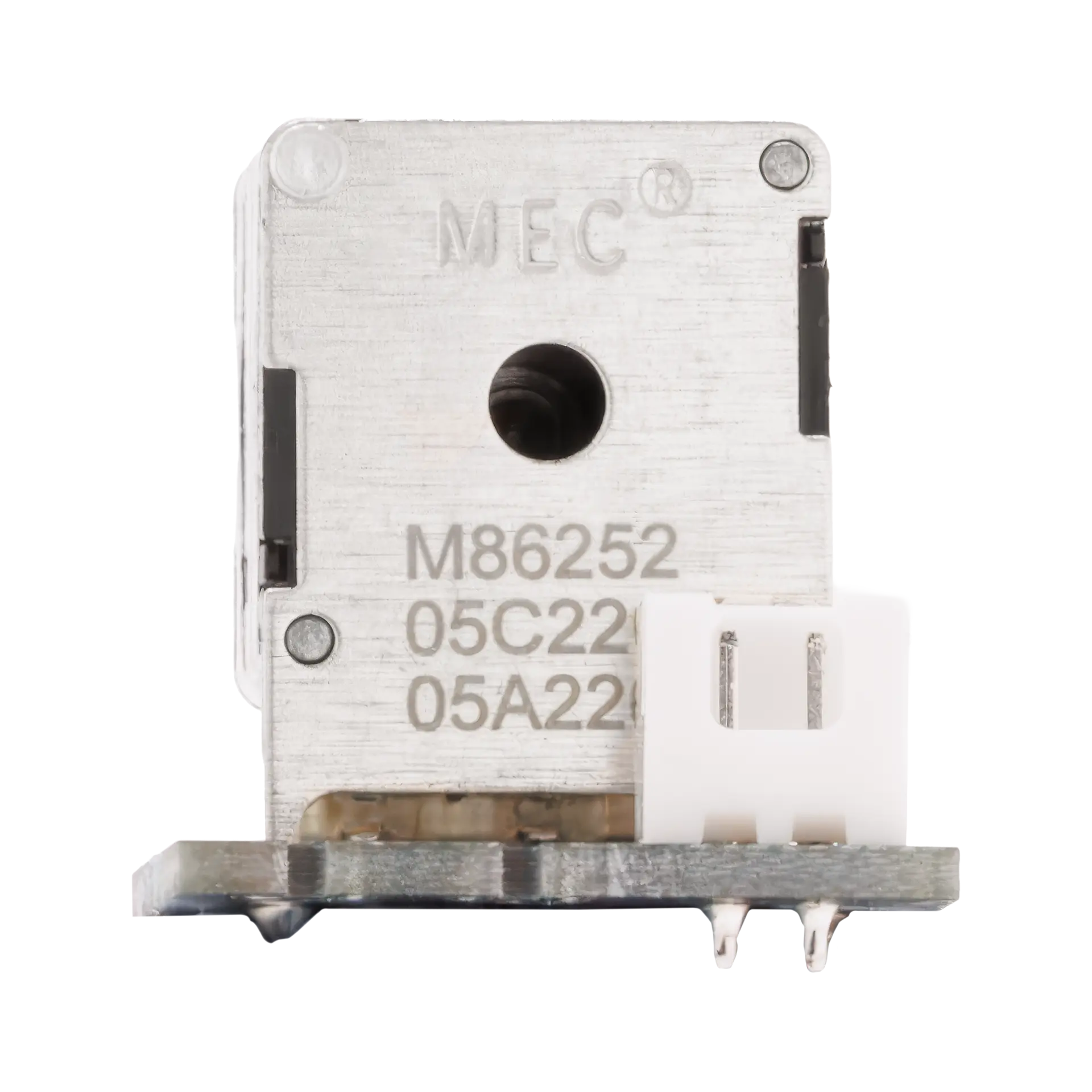

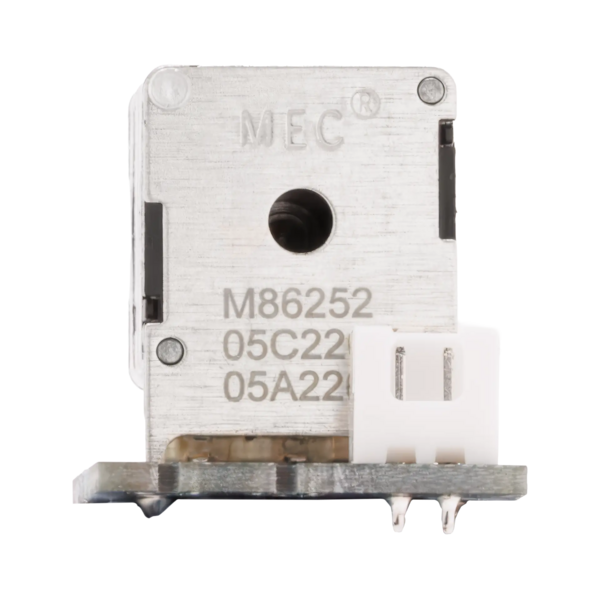

MEC stereo potentiometer
uniaxial
R1 = 05A220K (resistance 220 kOhm, (A) logarithmic)
R2 = 05C220K (resistance 220 kOhm, (C) reverse logarithmic)
centerclick

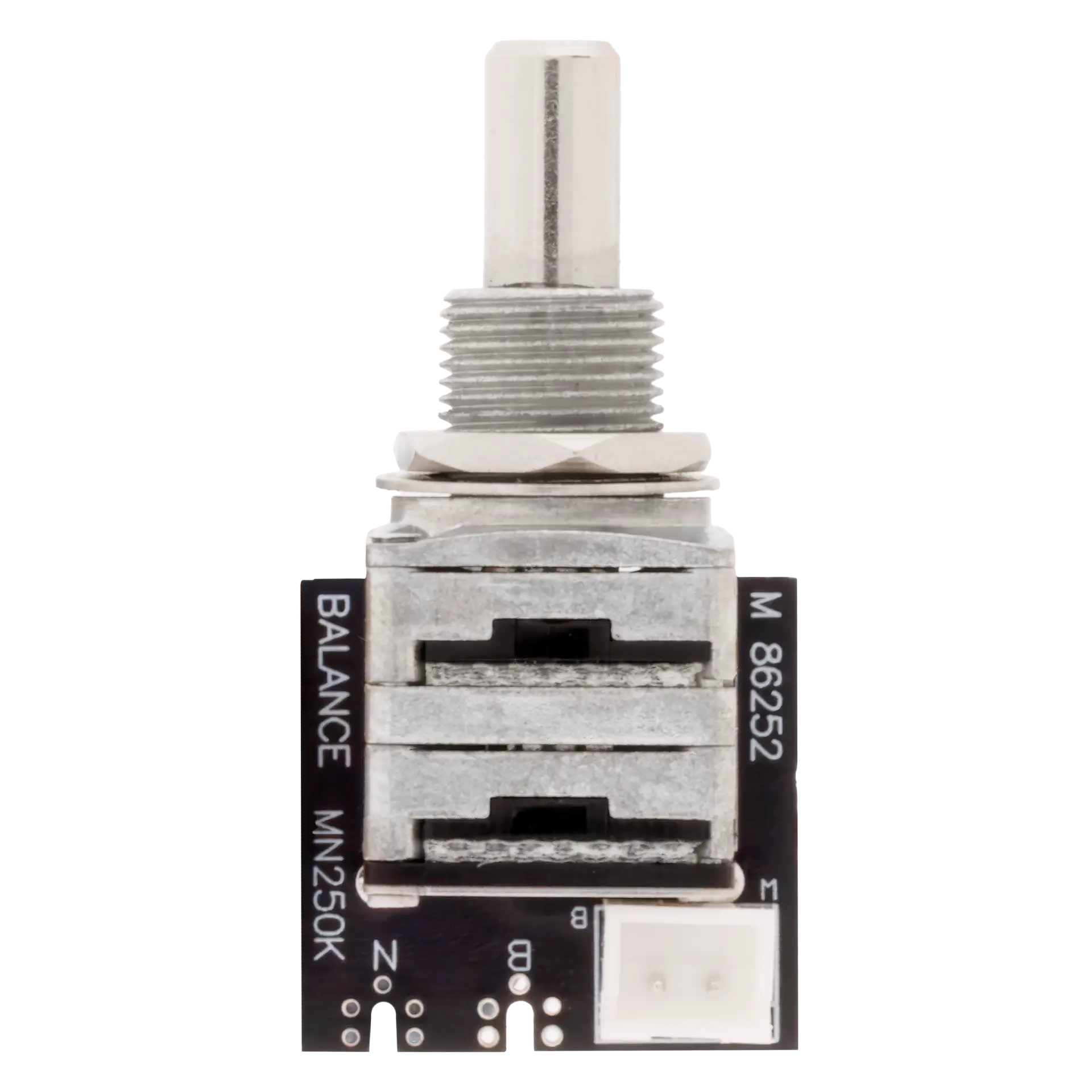

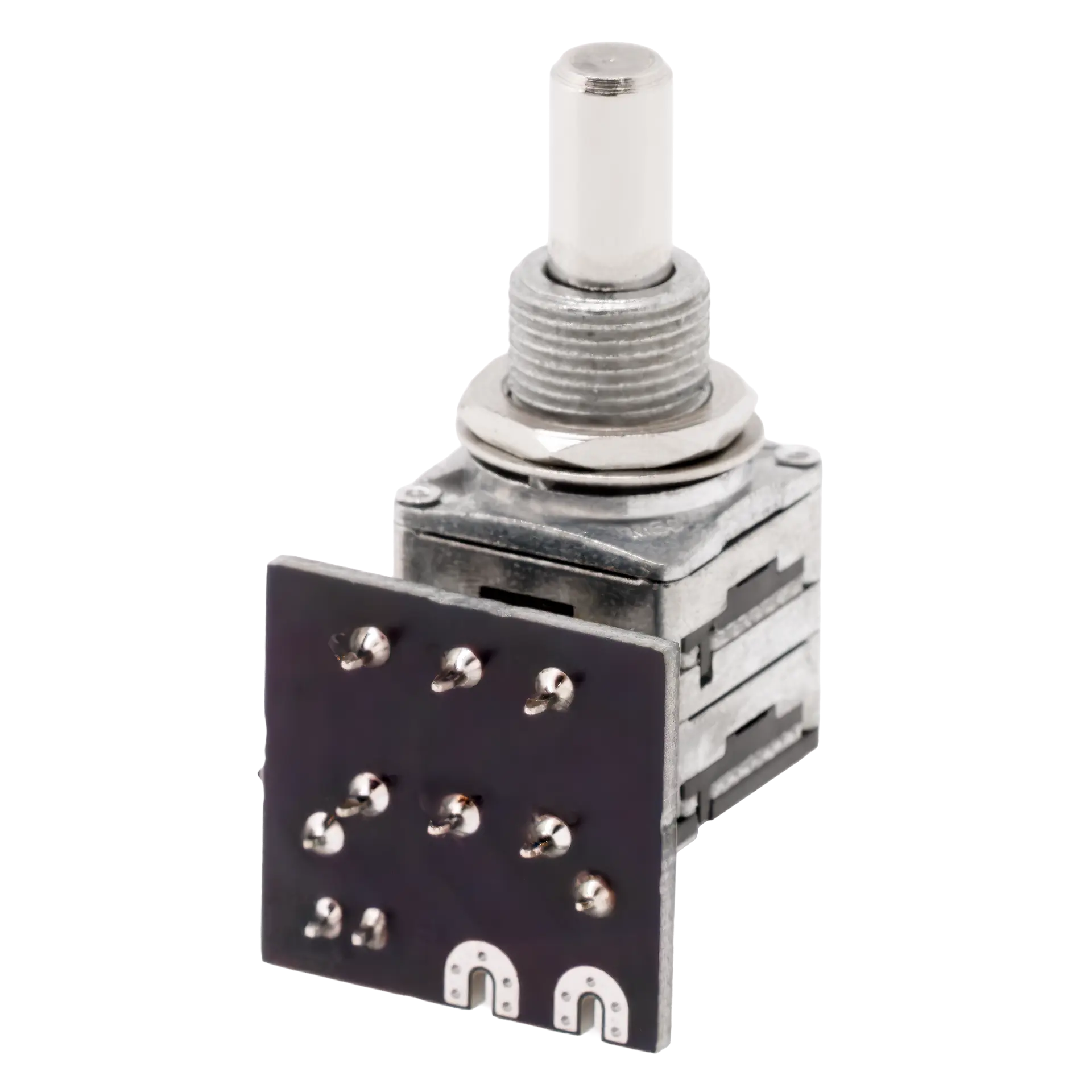

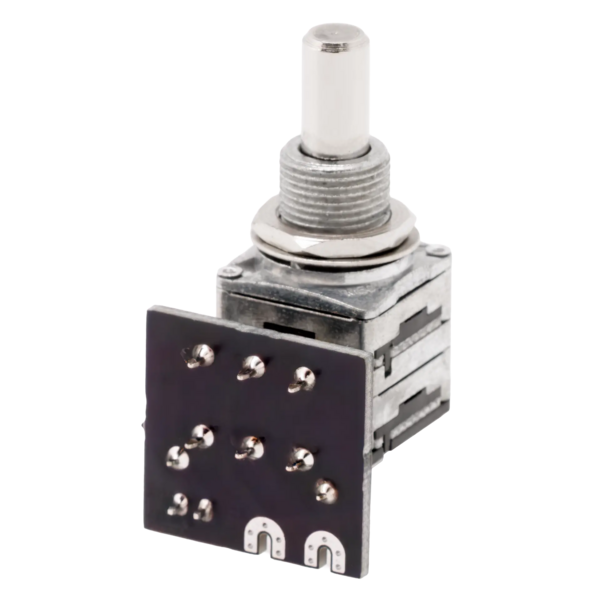

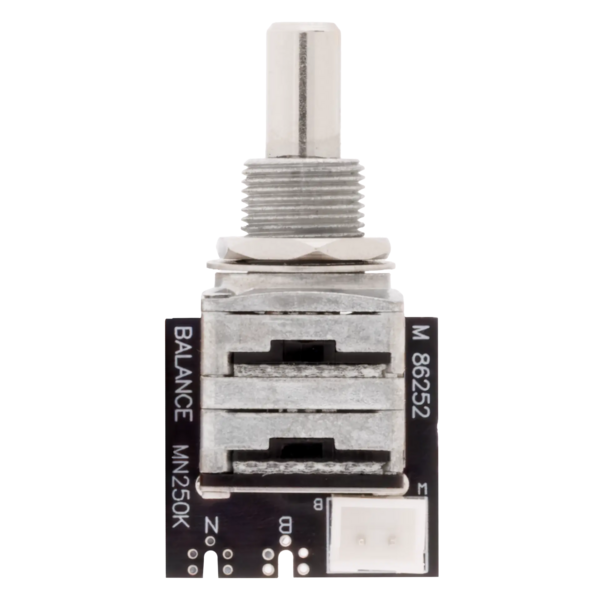

pre-wired on PCB (printed circuit board) with connector for easy replacement
M10 x 0.75 mm threads
mounting diameter 10 mm
thread length 9 mm
solid shaft
shaft length 11 mm
shaft diameter 6 mm
incl. nut and washer
dimensions incl. solder lugs (L x W x H) 44.3 x 25.1 x 25 mm
Note: Electronic components are excluded from the right of return if their cables have been cut or soldered, if they show signs of use, if they have already been installed or if there is other damage that affects the condition of the goods.
