Sadowsky Parts - MetroExpress Bass Pot (A25K P/P) Module

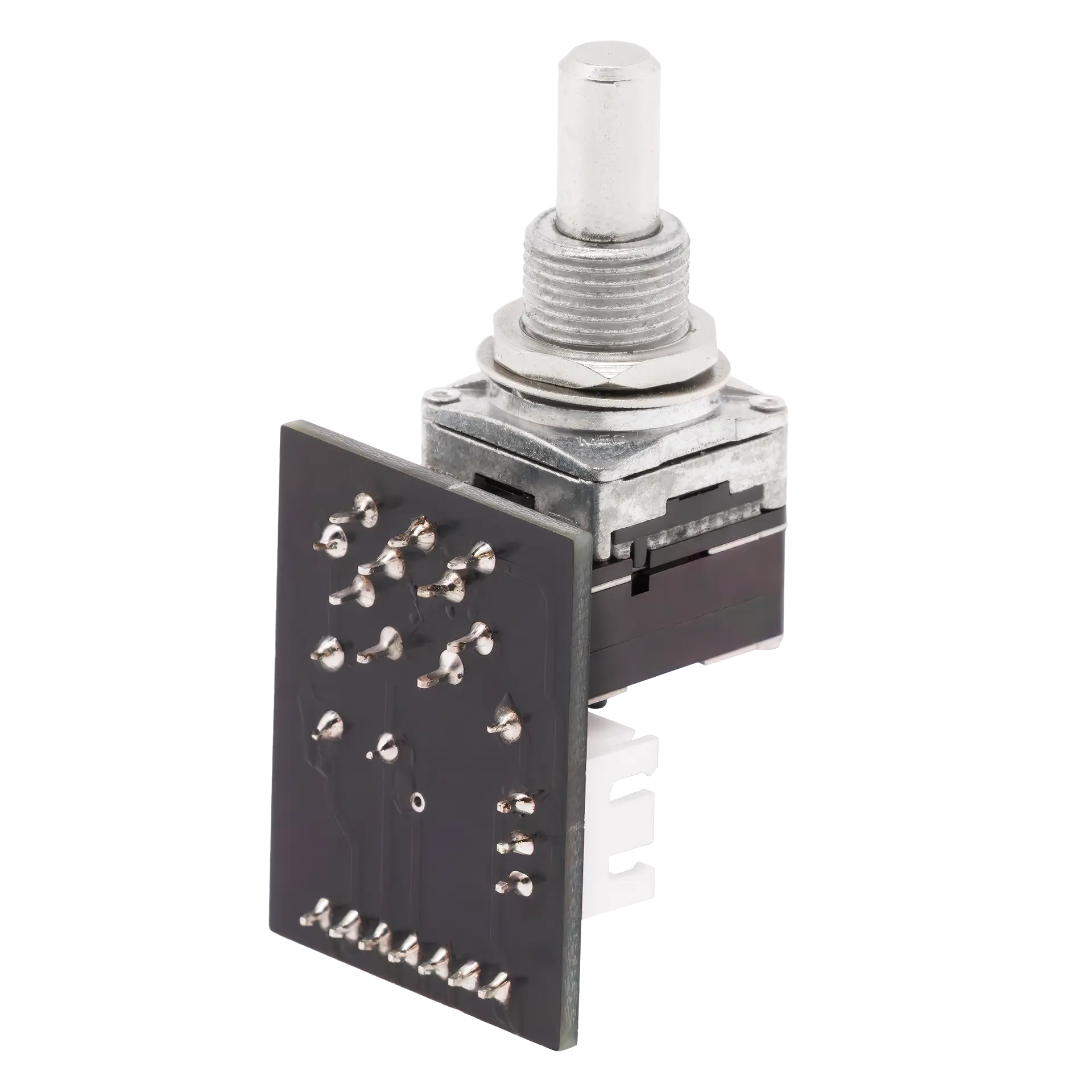

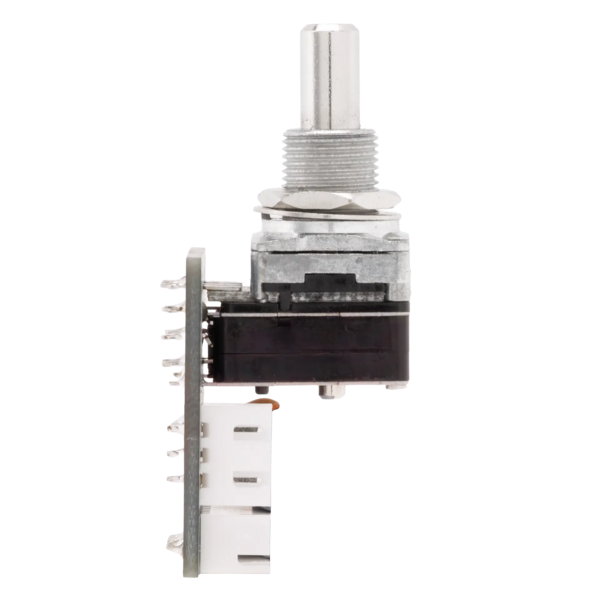

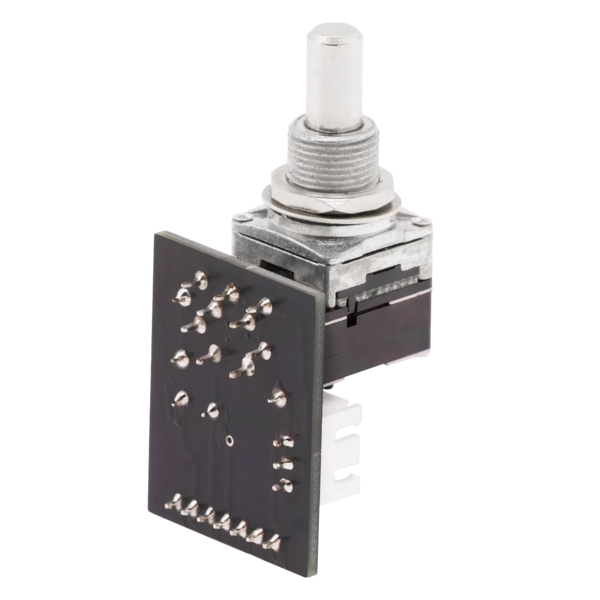

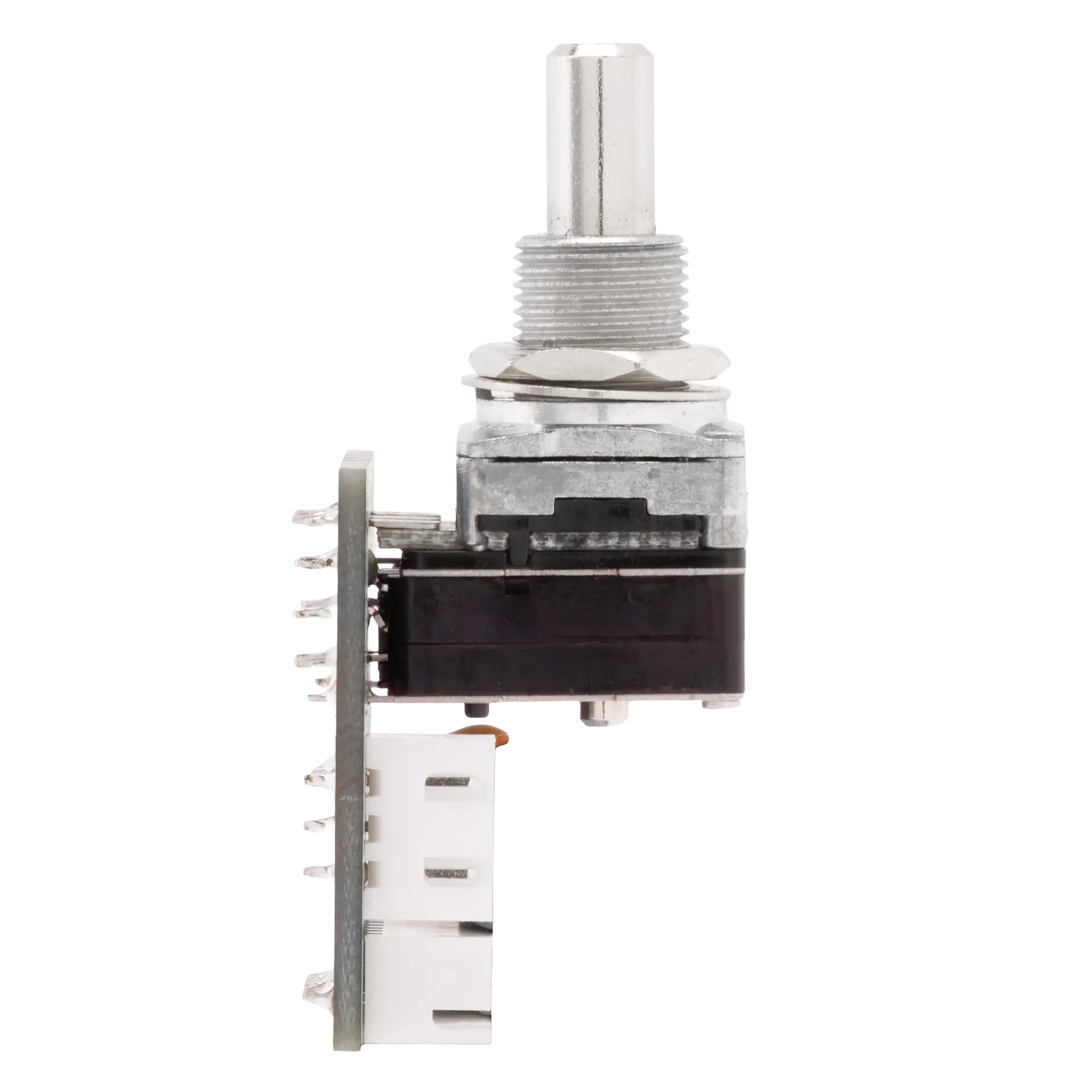

Bass control potentiometer (A25K P/P) for Sadowsky MetroExpress instruments. Compatible with Hybrid P/J, Vintage J/J, Vintage M-Style, Vintage M/J-Style, Modern, Ultra Vintage P, Will Lee Artist Line and Verdine White Artist Line models. The V2 version is equipped with a MEC potentiometer. Pre-wired on PCB (printed circuit board) with connector for easy replacement. Push/pull function for preamp bypass on/off. Mutter und Unterlegscheibe sind im Lieferumfang enthalten.

Article Number: SP S ME BAS V2

Buy now Find a retailer Contact

bass control for Sadowsky MetroExpress instruments
suitable for Hybrid P/J, Vintage J/J, Vintage M-Style, Vintage M/J-Style, Modern, Ultra Vintage P, Will Lee Artist Line and Verdine White Artist Line models

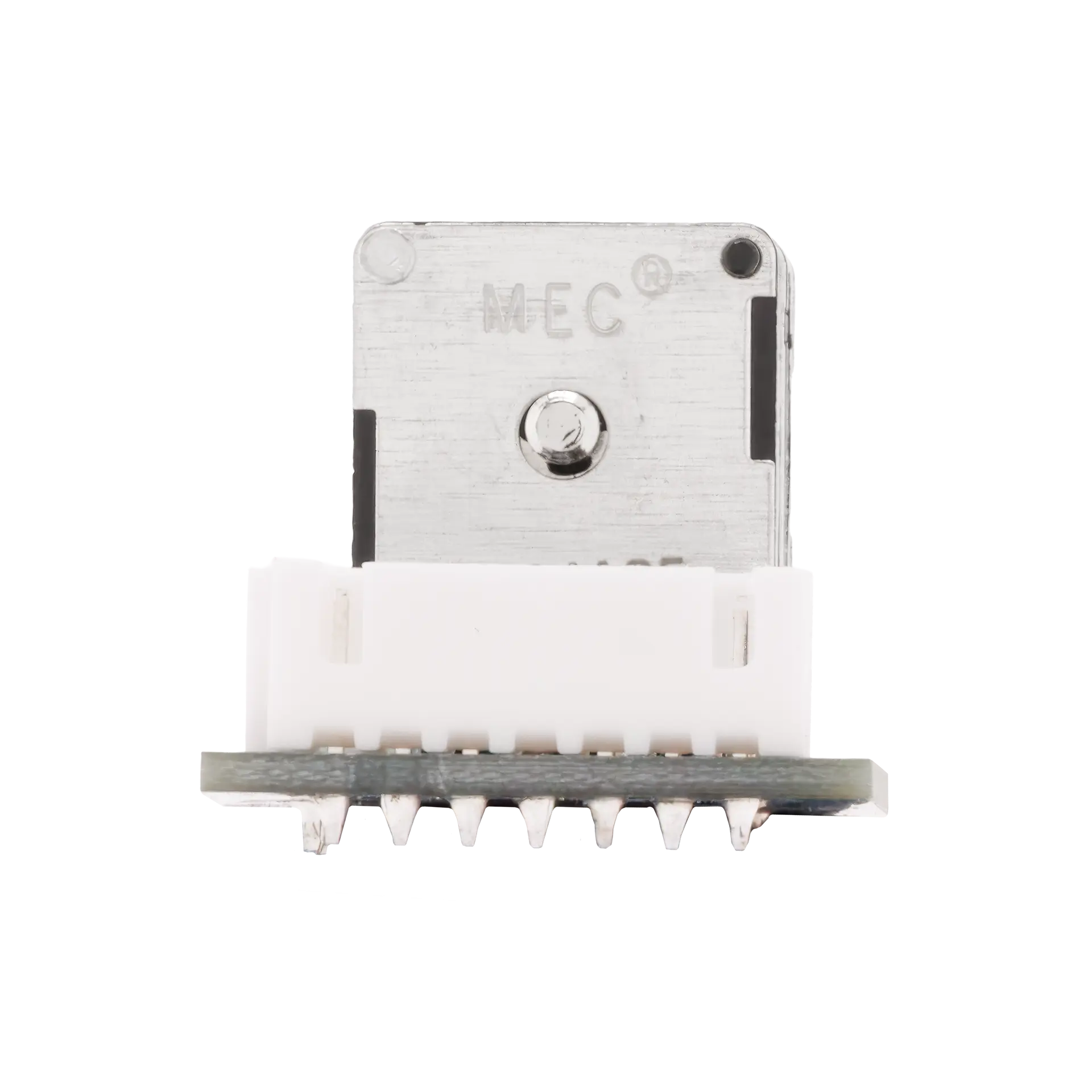

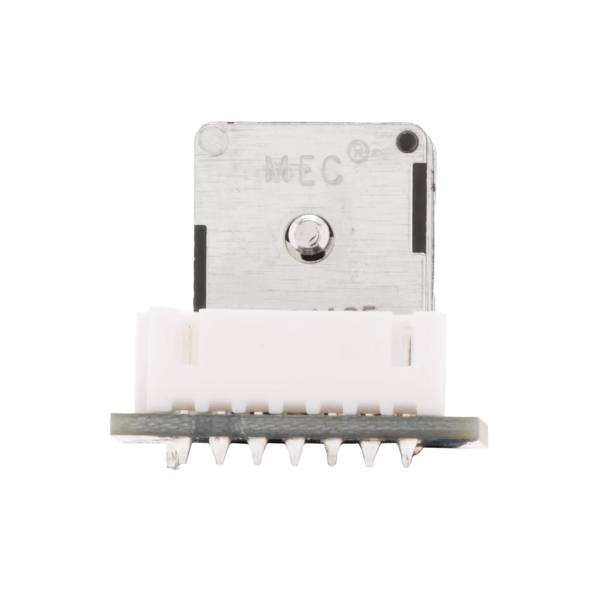

MEC mono potentiometer
uniaxial
A25K P/P (resistance 25 kOhm, (A) logarithmic)

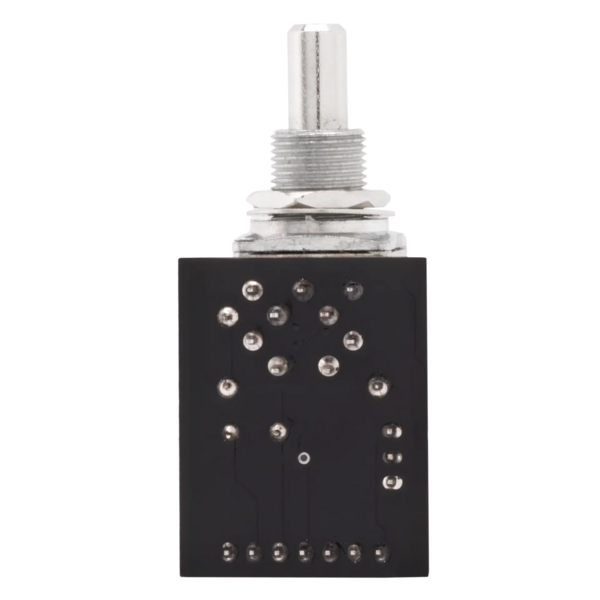

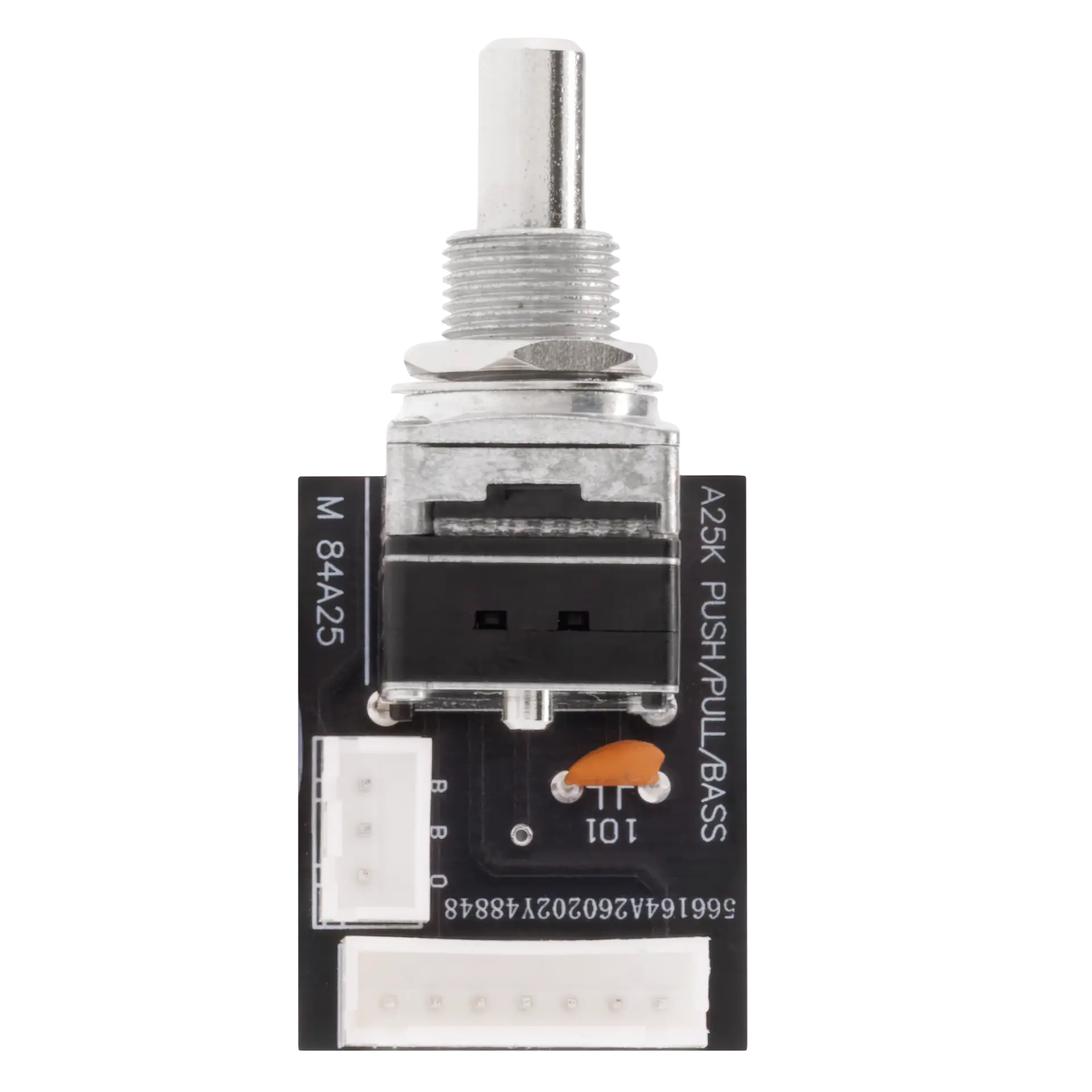

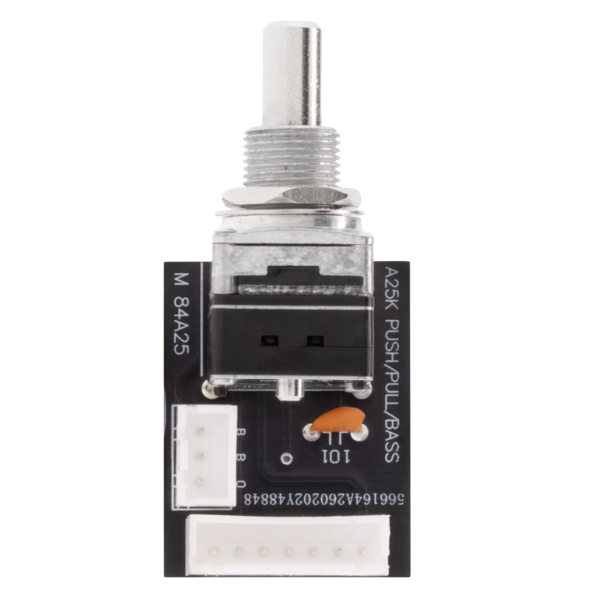

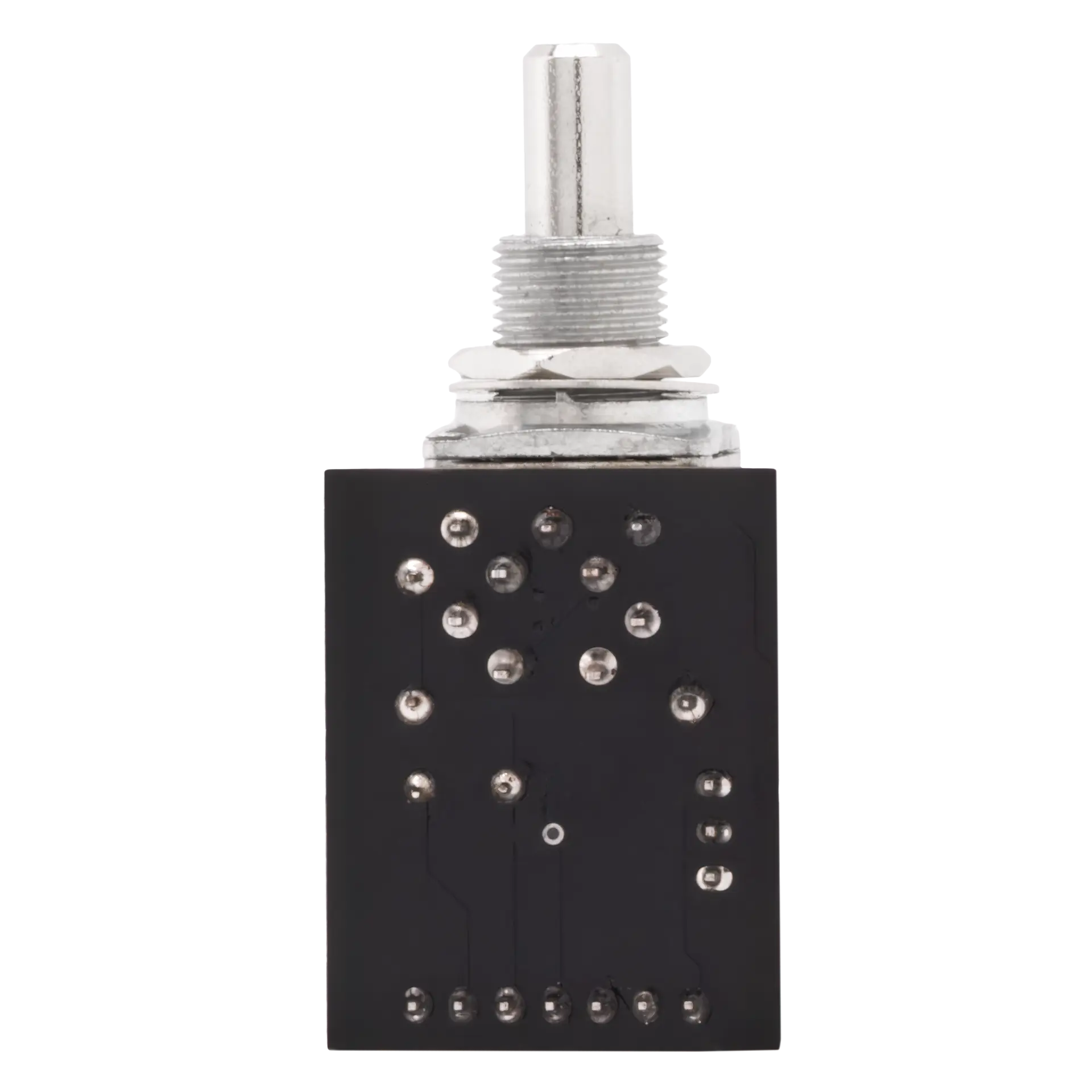

pre-wired on PCB (printed circuit board) with connector for easy replacement
push/pull function for preamp bypass on/off
M10 x 0.75 mm thread
mounting diameter 10 mm
thread length 9 mm
solid shaft
shaft length 11 mm
shaft diameter 6 mm
incl. nut and washer
dimensions incl. solder lugs (L x W x H) 55 x 25.2 x 25 mm
Note: Electronic components are excluded from the right of return if their cables have been cut or soldered, if they show signs of use, if they have already been installed or if there is other damage that affects the condition of the goods.
